Girodisc Front 2-piece Rotors - 2021 Acura TLX Type-S

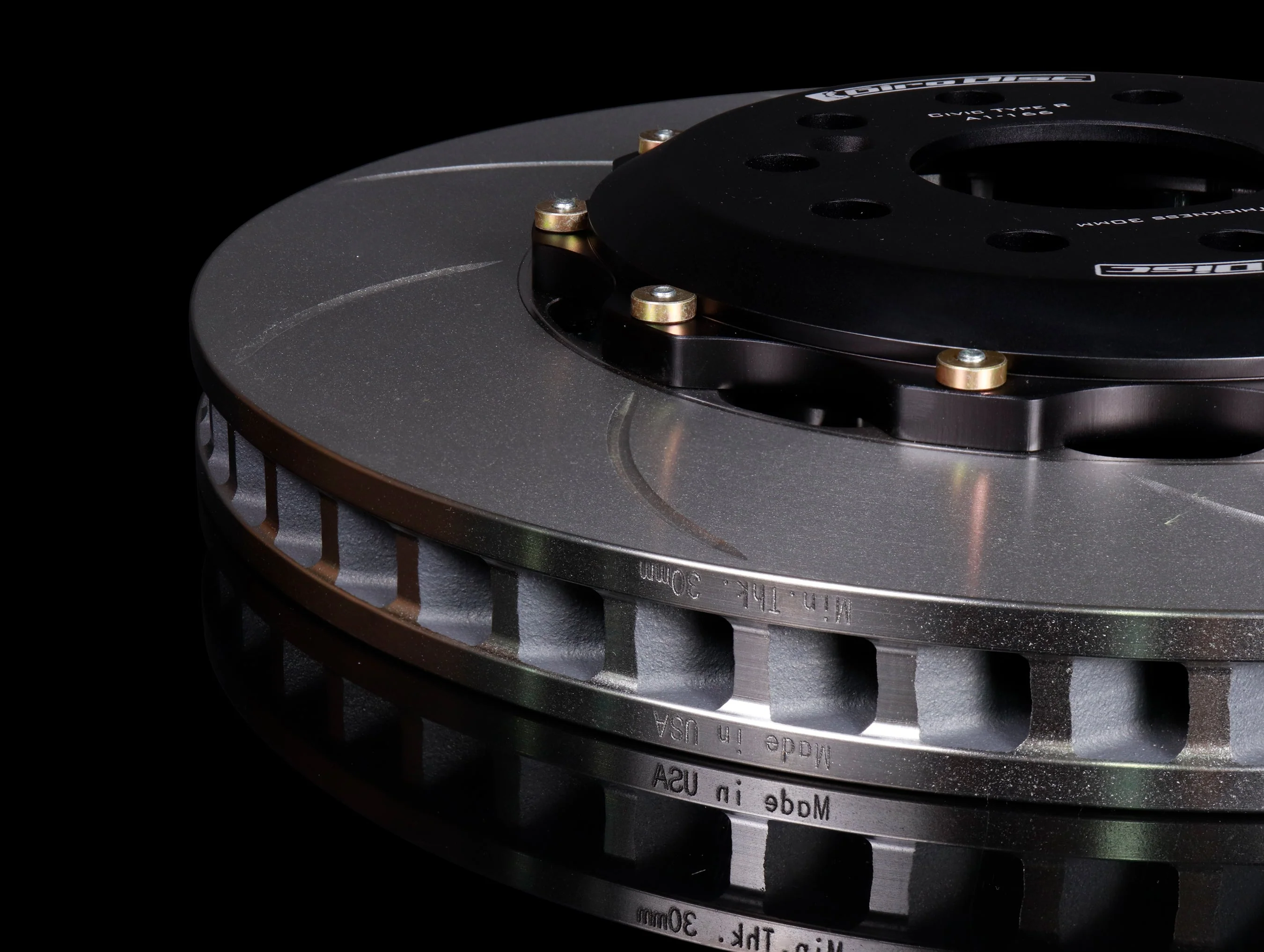

These GiroDisc 2-piece rotors are a direct replacement for the 2021+ Acura TLX Type-S. Weighing 21.85 lbs per rotor versus 25.8 lbs per factory rotor, these fully floating assemblies help shed unsprung weight and rotating mass from the front axle of the vehicle. They are designed to work with the factory calipers and do not require any modifications to the original brake system.
The rotor rings are machined from a proprietary casting made of high-carbon steel formulated to GiroDisc’s specifications. This superior metallurgy results in a rotor that holds up better, and the 48 curved vanes act as a centrifugal pump pulling air in through the hub to effectively cool the rotors under hard use. The 2-piece design means a reusable hat which can be attached to new rings (part number D1-284) when they need to be replaced.
All major components including the hats, rotor rings, and drive pins are manufactured in-house at our facility in Bellingham, WA from domestically sourced materials. The hat is made from 6061-T6 aluminum and coated in a black anodize finish. The drive pins are made from a high-strength steel alloy and cadmium-plated for corrosion resistance. All rotors are assembled with spring clips and Belleville washers for race-ready float while also being street-friendly with no noise from loose hardware.
Diameter: 364mm
Thickness: 30mm
Weight: 21.85 lbs per rotor assembly
The minimum thickness at which we recommend replacing these rings is 28mm. We also recommend replacing them if a crack leads to the edge of the ring.
