Quik-Latch QL-38 Series Single Hood Pin

The newest in hood pin offerings from Quik-Latch! Based on customer feedback and multiple requests, a push button hood pin that is sized and priced directly between the QL-25 series Mini Quik-Latches and the larger full size QL-50 series hood pin kits is now available.

Designed with the import performance market in mind, the QL-38 series hood pin deliver the same push button function that you've come to expect from Quik-Latch products while retaining serious holding ability that is required of hood pins. The reduced phyiscal presence of the 38 series hood pin kits ensures a clean and unassuming look that will blend in with your overall build.

Why install a hood pin made of substandard materials that could rust after just a few years? Go with Quik-Latch hood pins and make the finishing touch to your project car representative of the pride you have in your ride!

Hood pin features / specs

• Includes one 38-series latch and one stainless steel pin w/hardware
• Made from 6061 T6 aluminum & 303 stainless steel
• Holding force: 500lbs (per latch)
• Weight: 3.2 ounces
• Height: 22mm / .875"
• Height below mounting flange: 19mm / .750"
• OD of latch mounting flange: 44.5mm / 1.75"
• Hole size req. for mounting latch: 32mm / 1.25"
• Latch thread size: 1-1/8x24 UNEF
• Pin dimensions: 3/8" ball with 3/8x24 thread
• Retaining ring: 38mm/1.50" OD x 6.4"/.25" thickness
• Min. distance from top of mounting surface to mounting point: 28.50mm / 1.125"
• Max distance from top of mounting surface to mounting point: 88mm / 3.50"
• Max mounting angle: 18 degrees
• Distance needed to engage pin to latch: 17.5mm / .687"

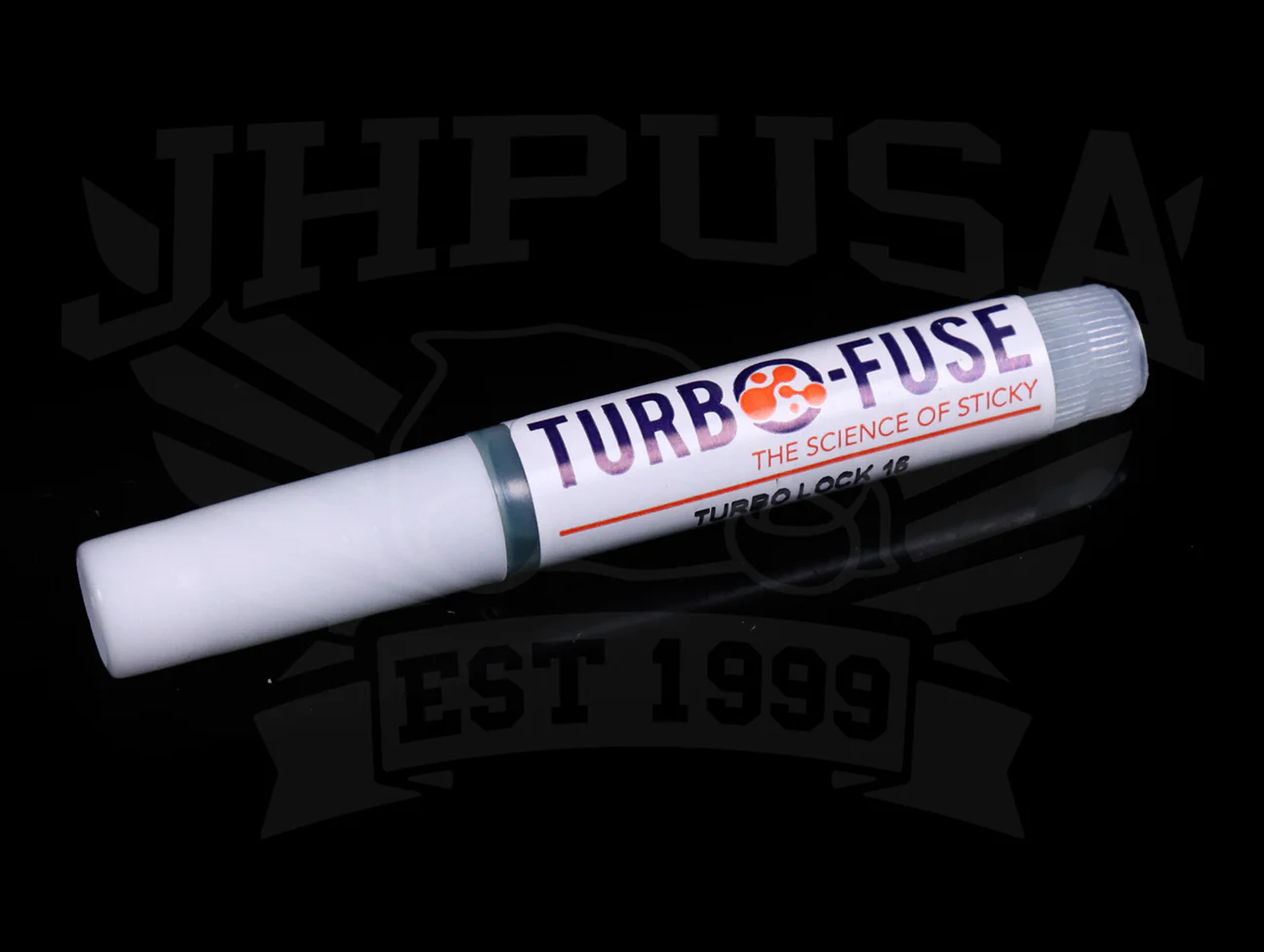

• 1 x tube of turbo thread lock
• Made in the USA

Color/Finish options: Machine and Black
