Supertech Forged Piston Kit - Subaru WRX 2.0L (JDM Spec C)

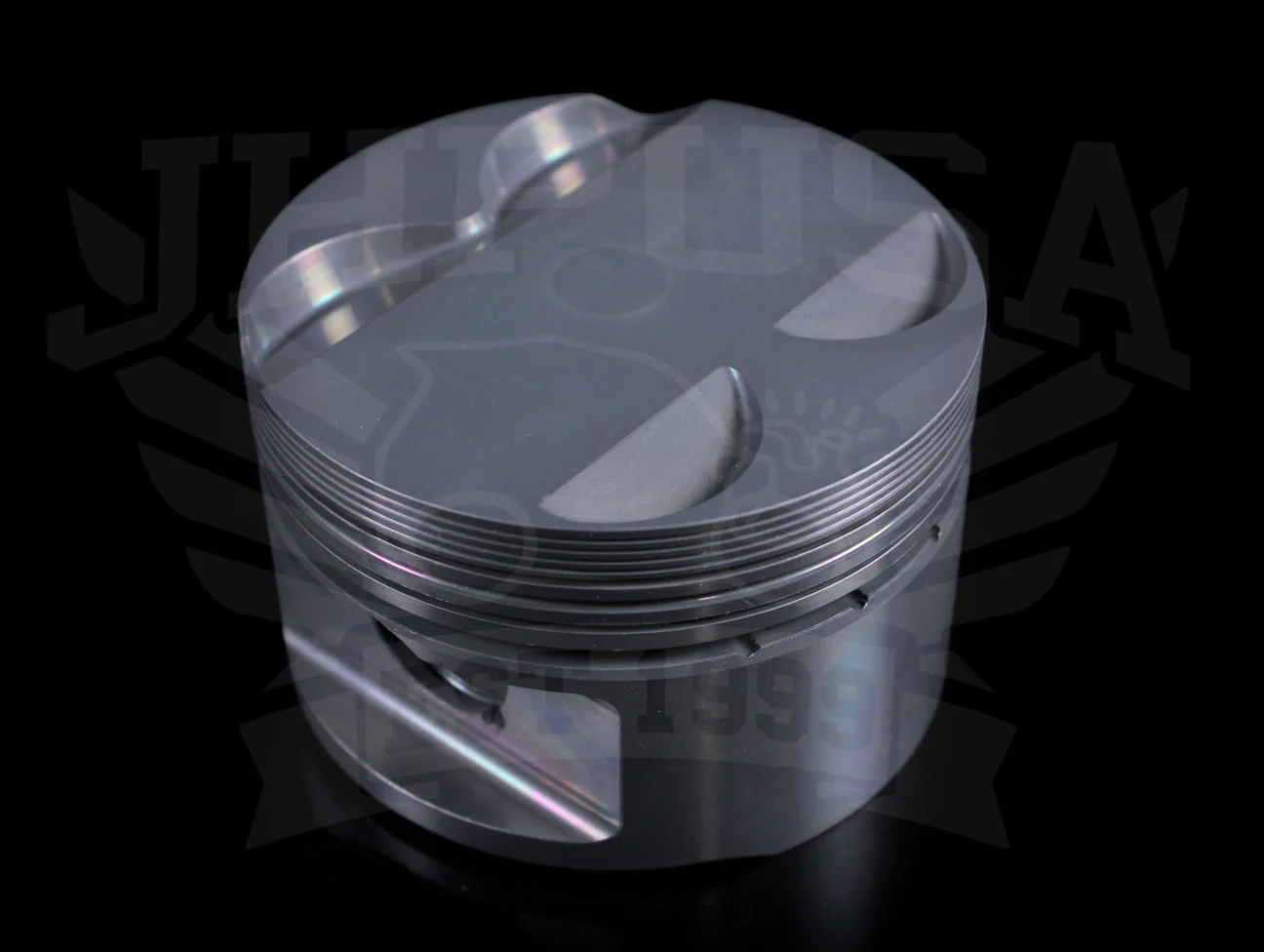

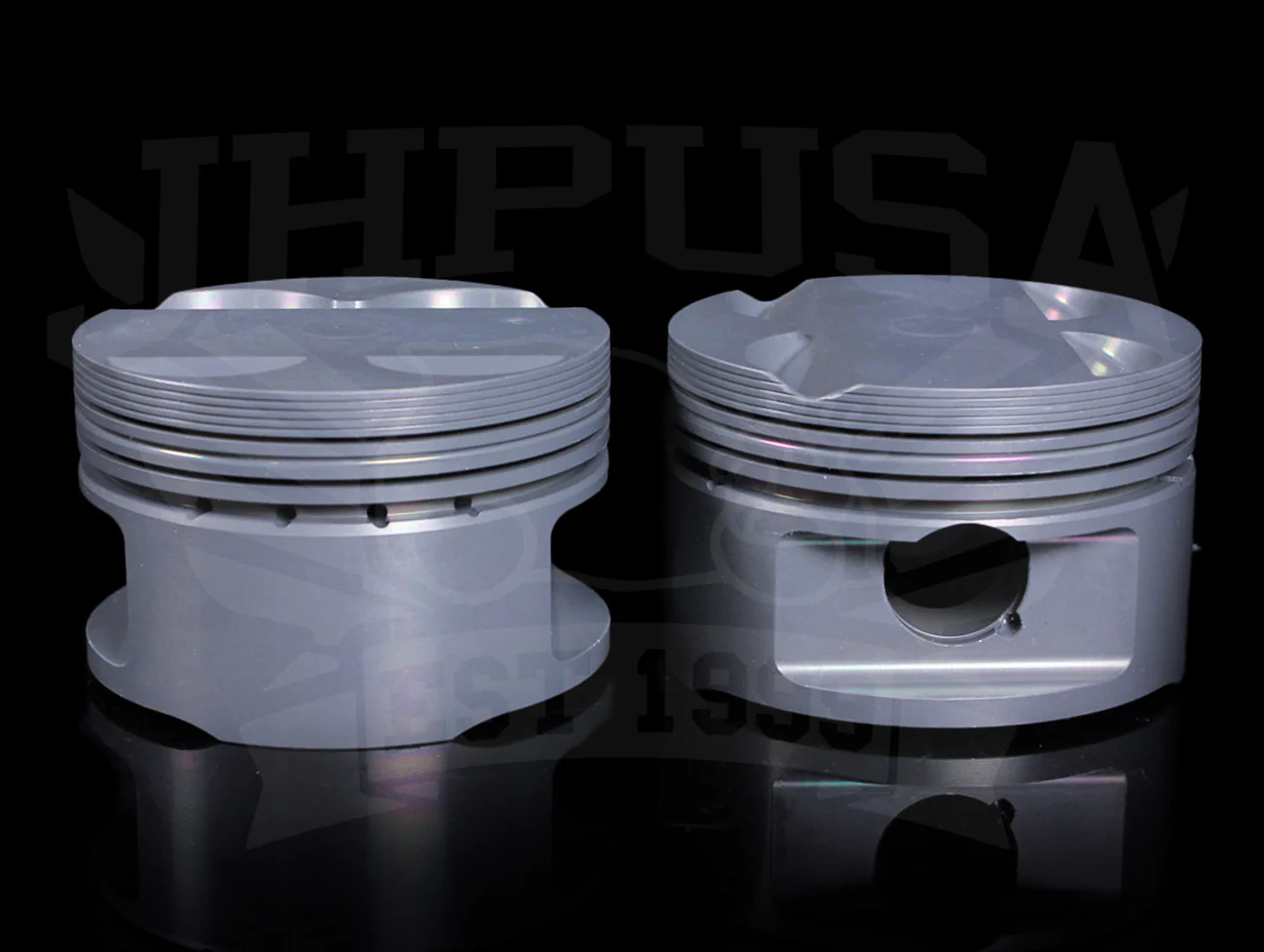

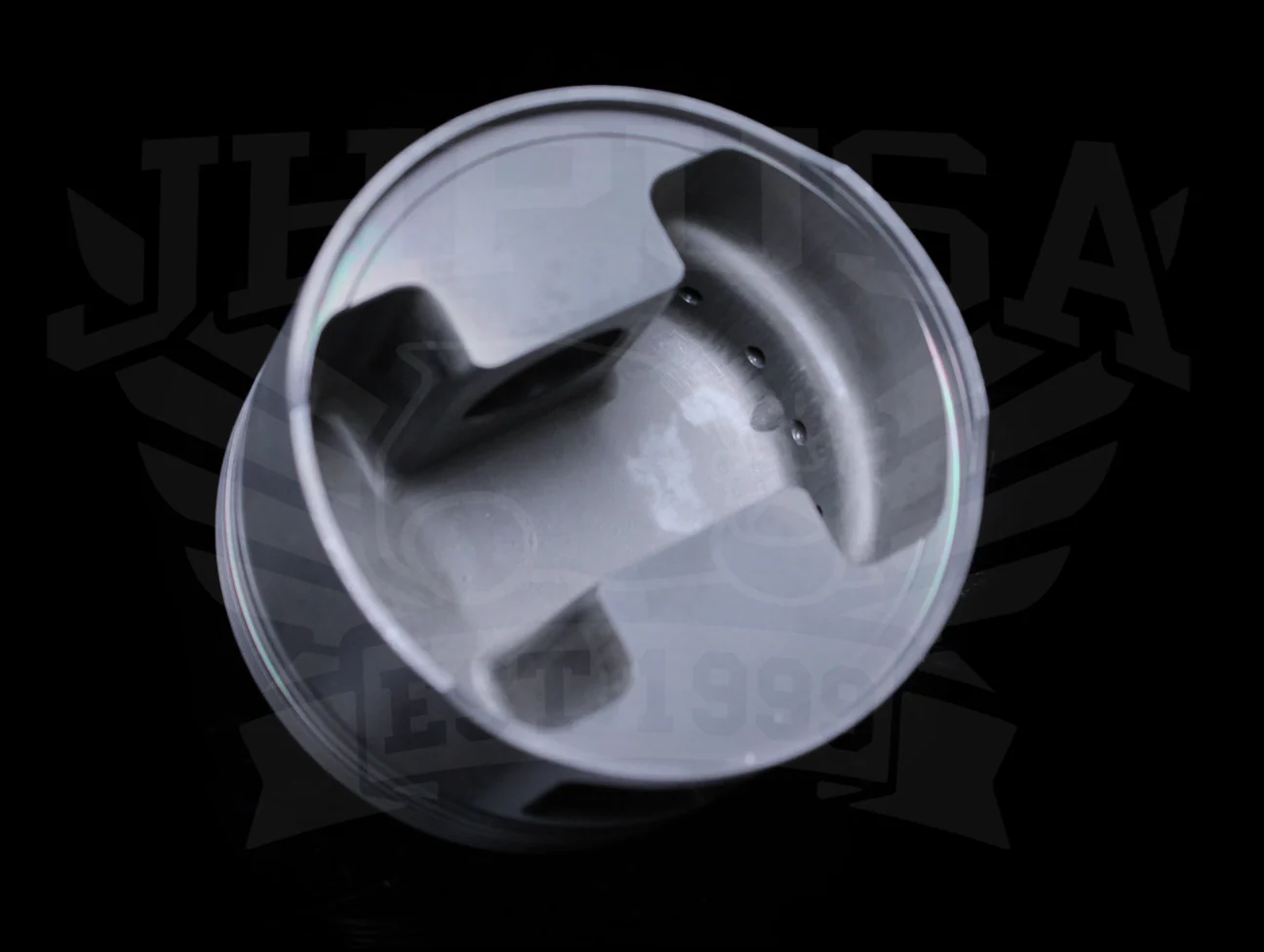

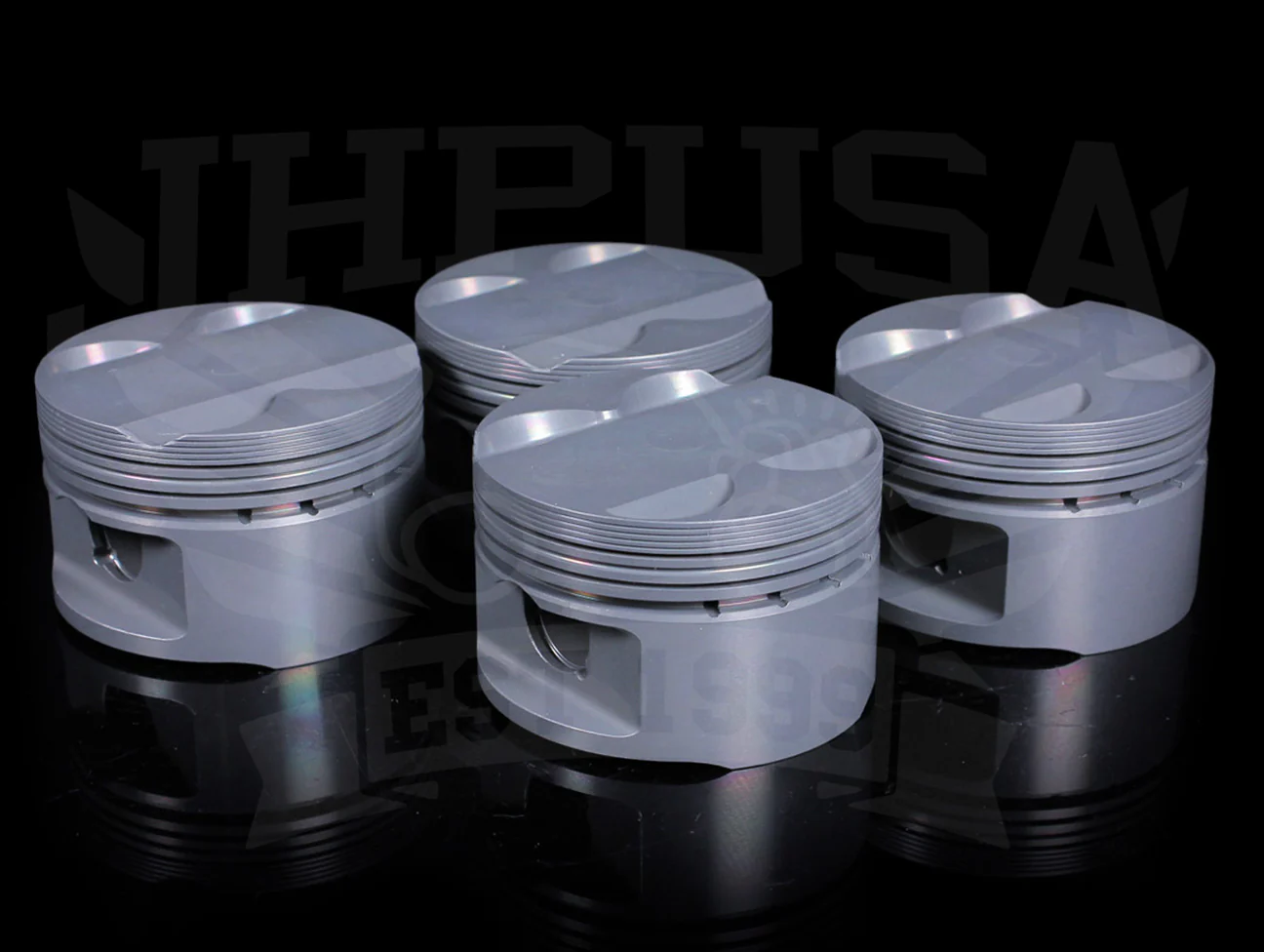

Supertech pistons are manufactured from extruded high silicon, enhanced 4032 alloy that low thermal expansion, excellent wear resistance and higher thermal conductivity. A phosphate dry lubricant coating is applied to pistons to protect against ring micro welding and enhance skirt lubrication.
Features
- Forged from enhanced 4032 alloy and CNC machined
- Contact reduction grooves are standard
- Honed & reamed pin bores and precise fit
- High tensile strength and evenly distributed hardness
- Withstands up to 42psi of turbo boost, w/alcohol, w/out any problems
- A 2 or 3 forging steps process yeilds a fine structural grain oriented in fibers in the same direction of the stresses.

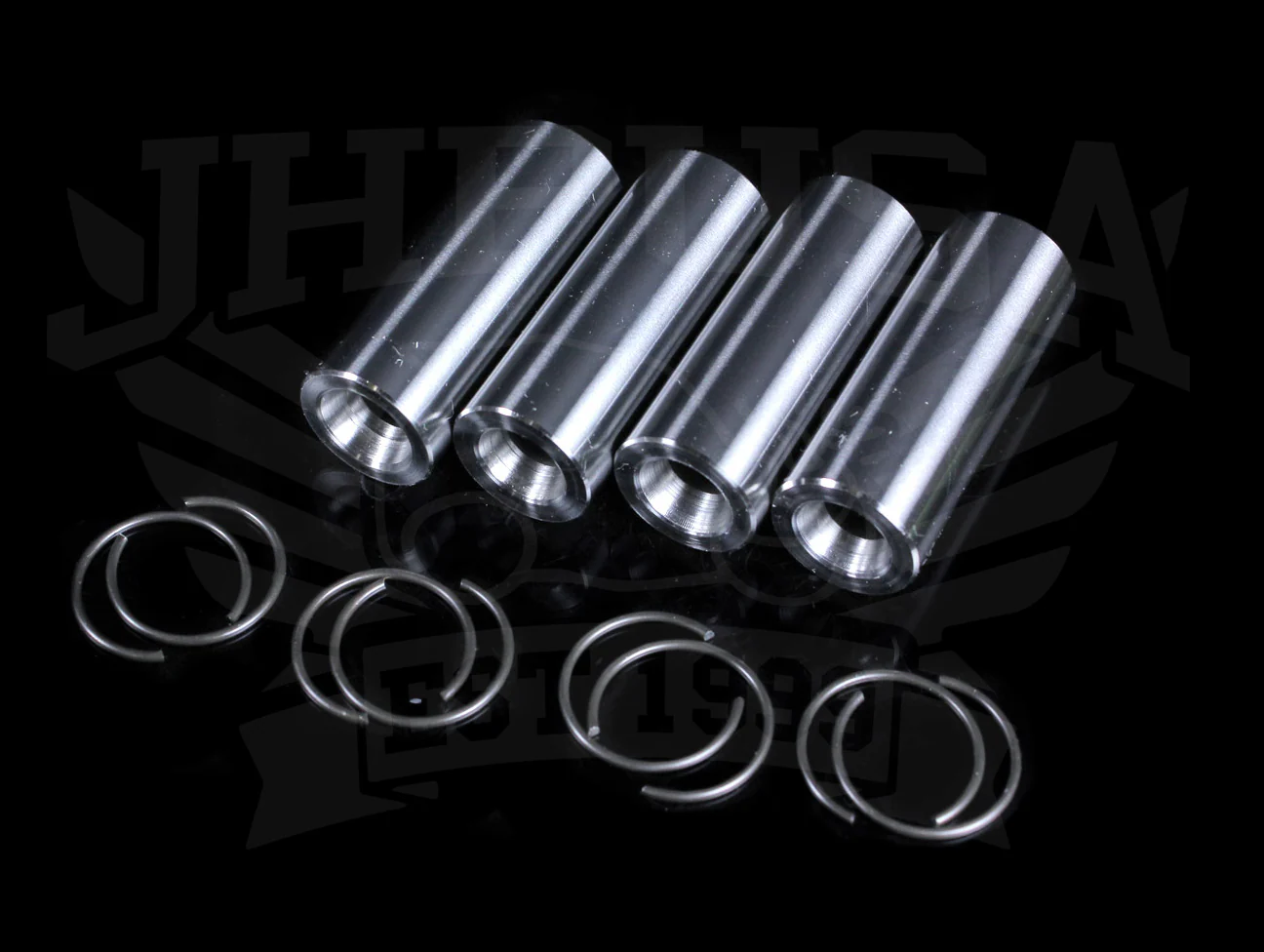

- Wrist pins are constructed or cold extruded chrome molly steel for high strength to be used with the wire clip locks.
- Quality Control is performed after every step of the manufacturing process in climate controlled environments to ensure reliability of dimensions

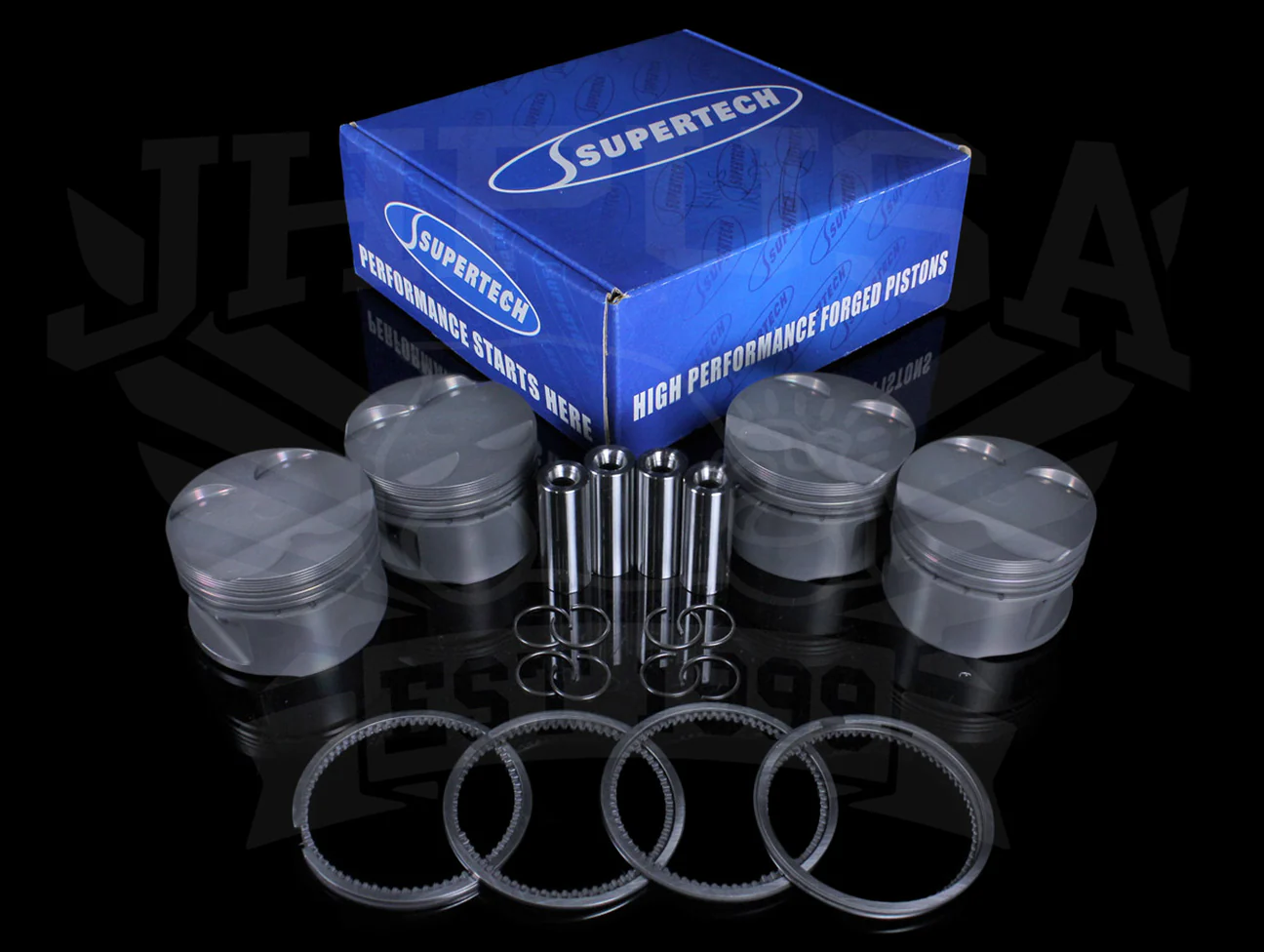

- Wrist pins and wire locks are included.
Subaru WRX 2.0L (JDM Spec C) Bore & Compression Ratio Options:
- 92mm (std) / 8.3cr

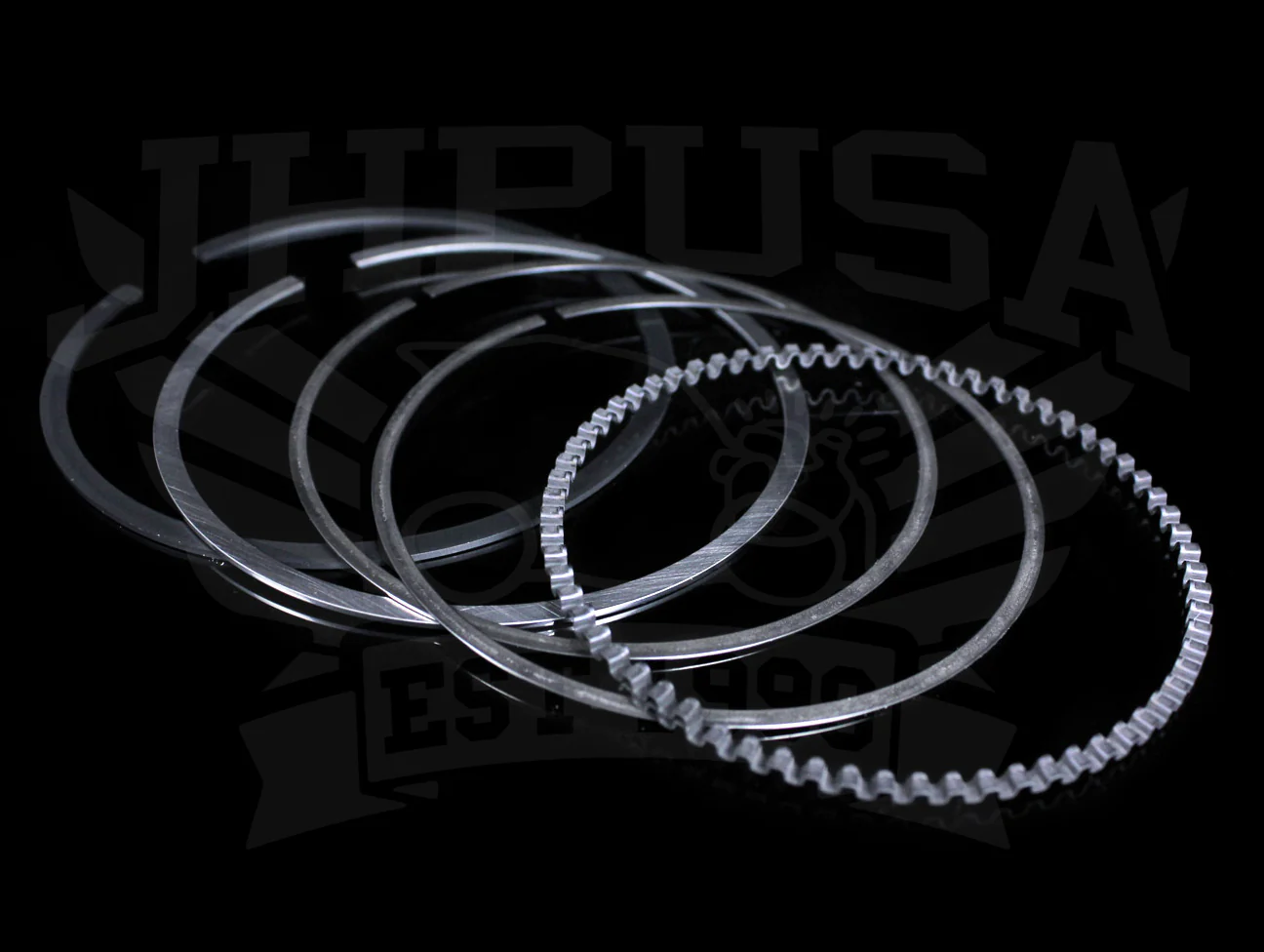

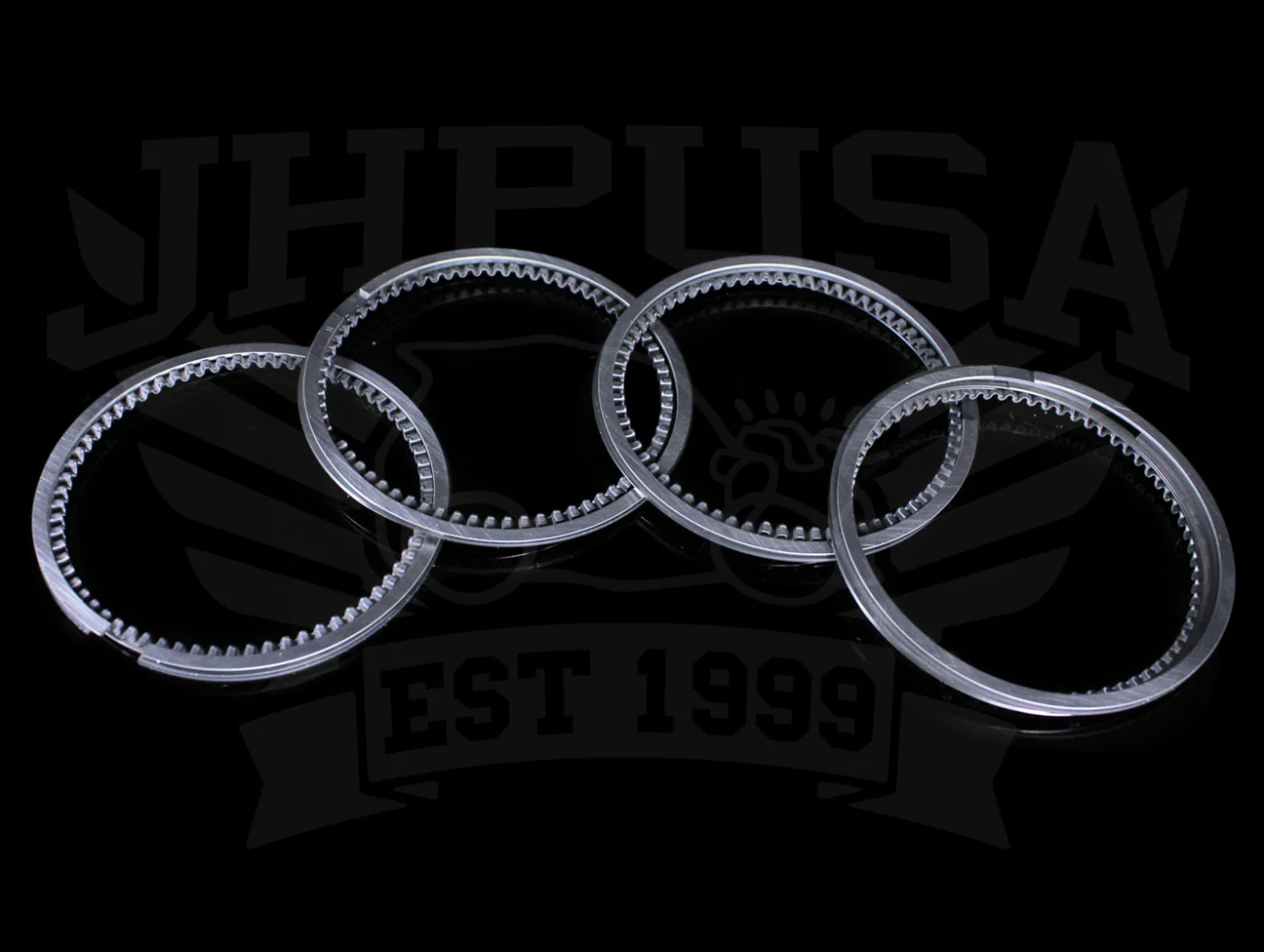

Use with rings: SWF20062-0 - 92.50mm (std) / 8.3cr
Use with rings: SWF20062-2 or SWF20060 - 93mm / 8.5cr
Use with rings: SWF20057-4
Select Bore & C/R Options
From $839.85
Supertech Forged Piston Kit - Subaru WRX 2.0L (JDM Spec C)—
$839.85
Description
Supertech pistons are manufactured from extruded high silicon, enhanced 4032 alloy that low thermal expansion, excellent wear resistance and higher thermal conductivity. A phosphate dry lubricant coating is applied to pistons to protect against ring micro welding and enhance skirt lubrication.
Features
- Forged from enhanced 4032 alloy and CNC machined
- Contact reduction grooves are standard
- Honed & reamed pin bores and precise fit
- High tensile strength and evenly distributed hardness
- Withstands up to 42psi of turbo boost, w/alcohol, w/out any problems
- A 2 or 3 forging steps process yeilds a fine structural grain oriented in fibers in the same direction of the stresses.
- Wrist pins are constructed or cold extruded chrome molly steel for high strength to be used with the wire clip locks.
- Quality Control is performed after every step of the manufacturing process in climate controlled environments to ensure reliability of dimensions
- Wrist pins and wire locks are included.
Subaru WRX 2.0L (JDM Spec C) Bore & Compression Ratio Options:
- 92mm (std) / 8.3cr
Use with rings: SWF20062-0 - 92.50mm (std) / 8.3cr
Use with rings: SWF20062-2 or SWF20060 - 93mm / 8.5cr
Use with rings: SWF20057-4
